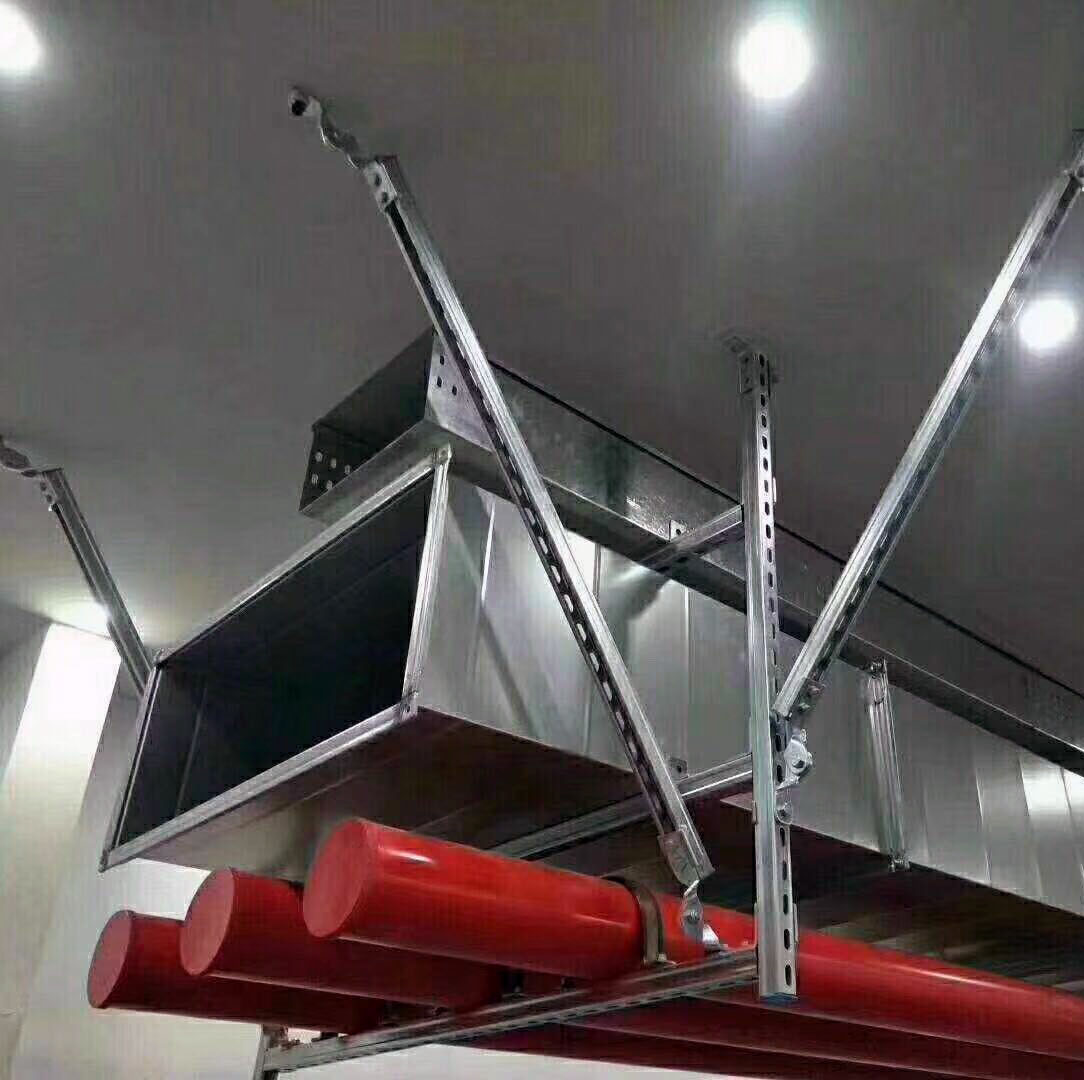

Seismic support
Anti-seismic support: an anti-seismic support facility that is firmly connected to the building structure and takes seismic force as the main load. It is composed of anchors, reinforced booms, seismic connection members and seismic braces.
After the installation of earthquake-resistant supports in electrical and mechanical engineering such as building water supply and drainage, heating, ventilation, air conditioning, gas, heating, electricity, communications, and fire protection, it can effectively reduce earthquake damage and prevent secondary disasters. The seismic hanger is divided into longitudinal (parallel to the pipeline centerline), lateral (vertical to the pipeline centerline), and longitudinal and lateral seismic supports from the force direction.
When the building encounters an earthquake of fortification intensity, the seismic force generated by the pipeline and equipment is transmitted to the structure through the seismic support and hanger, so as to achieve the effect of small earthquakes, repairable, and large earthquakes.

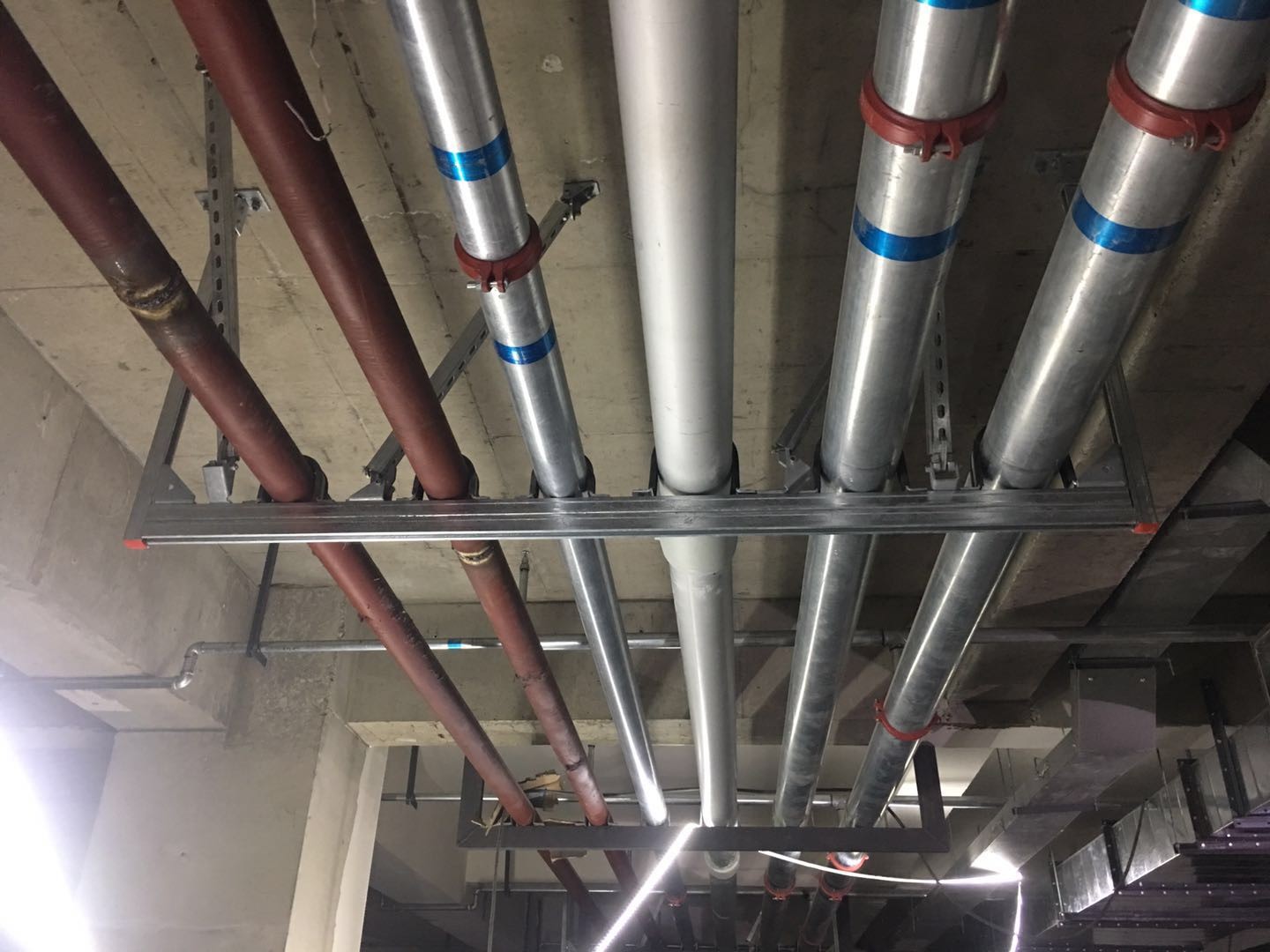

Assemble the finished support
Assembling the finished product bracket: It is a mechanism that supports and restrains the displacement of the object or restricts the magnitude and direction of the displacement of the object. The assembled finished bracket is a support and hanger that is firmly connected to the building structure with gravity as the main load. The assembly support and hanger system is composed of: base, beam, column, connecting piece and fixed piece (guide piece).
Assembling the finished product bracket is connected with the channel steel prefabricated by the factory. The construction site only needs to be directly assembled and installed to form. The modular design can be flexibly adjusted on site and fine-tuned by nuts. Generally, there is basically no need for processing on site, and very few require simple cutting.

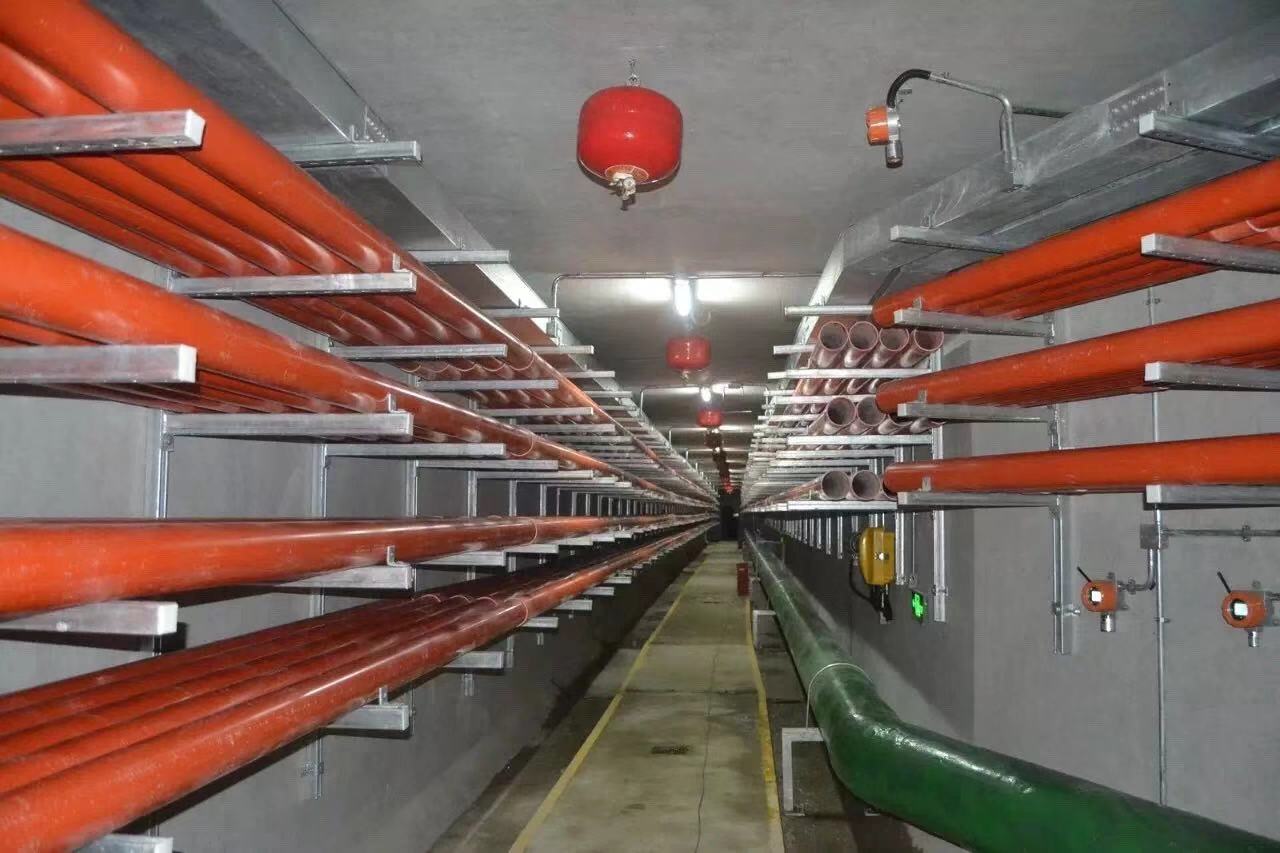

Urban pipe gallery bracket
The urban pipe gallery bracket integrates various pipelines such as municipal administration, electricity, communications, gas, water supply and drainage, and heating. An intensive tunnel is built in the underground space of urban roads, and it is equipped with inspection ports, hoisting ports, and testing, The control system is a kind of urban integrated pipeline project.
The integrated pipe gallery pipeline support hanger system consists of embedded channels, high-strength T-shaped connecting bolts, C-shaped channel steel, cantilever channel steel (support arm support), channel steel accessories, seismic components, seismic pipe clamps, cable clamps, etc. Composed by means of bolt mechanical connection.
The embedded channel generally adopts Q235B channel steel, which does not damage the concrete structure. It has high-strength load-bearing capacity and strong corrosion resistance. The pipe gallery support arm supports are channel steel locks and hexagonal head bolts to connect various connectors with the embedded The channel steel is connected, and the arm support generally adopts Q235B or Q345B. The urban pipe gallery bracket adopts prefabricated components for adjustable installation, bolt connection, combined installation.
Shanghai U Channel is committed to the R&D and manufacturing of seismic supports, assembled finished supports, and urban pipe gallery supports, providing a service provider of integrated solutions for building electromechanical support and hanger systems, and providing customers with professional and high-quality services.
